Aluminium tent roof

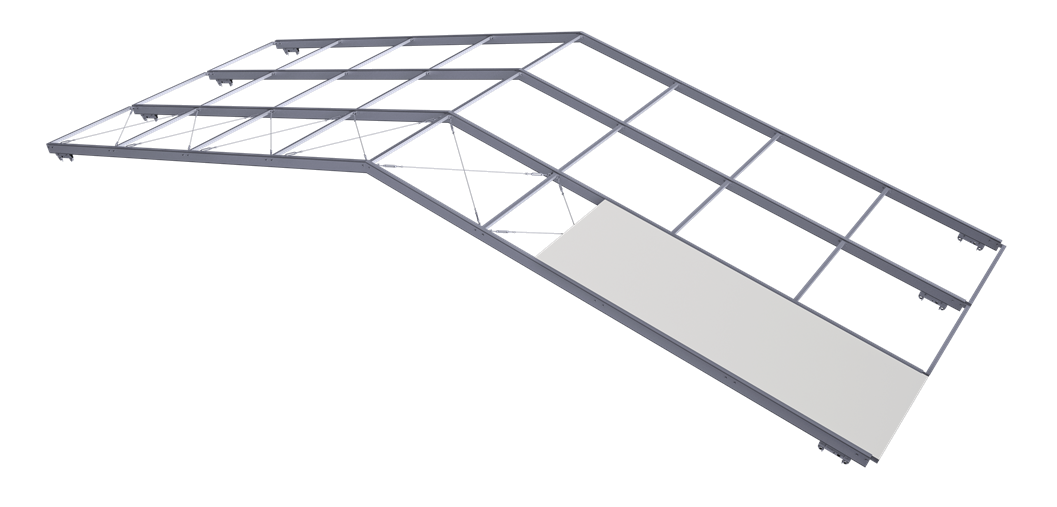

Ultra-light aluminium tent roof

Light weather-proofed roofs are high on the wish list of every worksite and the ultra-light aluminium tent roof by Scafom-rux in span widths of up to 20m is the ideal solution.

The costs of logistics and storage are low and the components are high-load-bearing. Fast assembly is exceptionally easy for scaffolds of virtually any width or length. All components can be moved and assembled manually.

Caractéristiques

Span widths:

  • Up to 10m as a pent roof with 75 kg/m²
  • Up to 15m as a saddle roof (18 degree roof pitch)
  • with 75kg/m² snow or wind load capacity
  • Up to 20m as a saddle roof (18 degree roof pitch),
  • without snow load capacity or with tensioning
  • straps up to 25kg/m² snow load

Ready-assembled roof elements with 10m roof length and up to 20m roof width that have a crane weight of under 1,500 kg. The transport weight and the transport volume are about 33 % in comparison to conventional cassette roof systems.

Spécifications

Sheeting

HD sheeting, 100kg/m² load capacity, accessible, UV-stabilised and translucent


Roof design

Pent or saddle roof
